    Andon光电传感器插座——Renesas

    发布时间：2024-03-21 14:23:02     浏览：1020

    Andon Electronics是全球领先的精密插座制造厂商，其生产的插座广泛应用于PCB板上，能够与图像传感器、光电传感器、气体传感器、电源转换器、电池、晶体振荡器、保险丝、继电器等各类电子设备完美接插。

    Renesas瑞萨电子是全球领先的汽车电子解决方案提供商之一，其产品线广泛且多元化，涵盖了传感器、控制器、软件和算法等多个领域。Renesas瑞萨传感器具有高精度、高可靠性和快速响应的特点，可以广泛应用于汽车的各种感知和监测功能中。

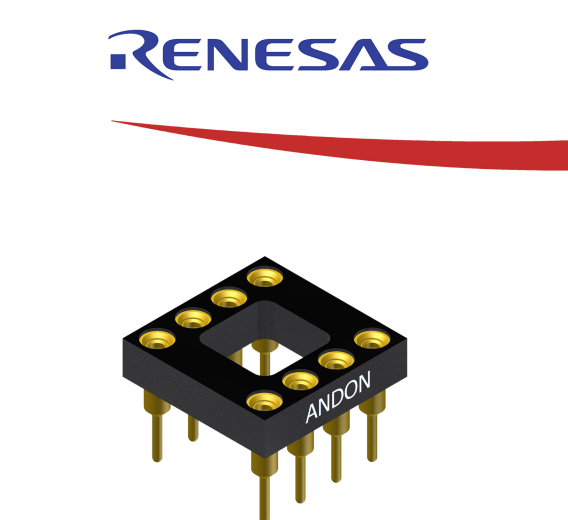

    Andon光电传感器插座——Renesas

    Andon光电传感器插座可适配于Renesas品牌，它可以精确地匹配Renesas光电传感器的接口标准，有效减少信号损失，提升传感器数据的准确性和可靠性，确保在复杂和多变的汽车环境中能够稳定、高效地传输数据。

    具体如下：

    RENESAS Model NumberAndon Part Number Replace "XXX" with Terminal TypeThru-HoleSurface MountPin ? [in]Figure NumberPage Number
    NR8300FP-CCR080-0403-01N-XXX-R27-L14274K281K.01893
    NR8360JP-BCC10-314-14-01-XXX-R27-L1401S93S.01863
    NR8800FS-CBR080-0403-01N-XXX-R27-L14274K281K.01893
    NV4V31MFR056-0403-01N-XXX-R27-L14400T4414T4.01283
    NV4V31SFR056-0403-01N-XXX-R27-L14400T4   414T4  .01283
    NV4V41SF  R056-0403-01N-XXX-R27-L14400T4   414T4 .01283
    NX6240GP  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX6308GH  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX6309GH  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX6314EH  R080-0404-01N-XXX-R27-L14274K   281K. 01812
    NX6342EP  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX6350EP SERIES  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX6350GP SERIES  R080-0404-01N-XXX-R27-L14274K   281K.01812
    NX6351GP SERIES  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX6352GP SERIES  R080-0404-01N-XXX-R27-L14274K   281K.01812
    NX6353EP SERIES  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX6410GH  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX6411GH  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX6414EH  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX6511GH  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX6514EH  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX7335AN-AA  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX7338BF-AA  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX7339BB-AA  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX7437AG-AA  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX7537BF-AA  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX7539BB-AA  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX7563JB-BC  C10-314-14-01-XXX-R27-L1401S   93S .01863
    NX7637BF-AA  R080-0404-01N-XXX-R27-L14274K   281K .0181
    		2
    NX7639BB-AA  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX8315XC  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX8316XC  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX8601BF-AA  R080-0404-01N-XXX-R27-L14274K   281K .01812
    NX8602BF-AA  R080-0404-01N-XXX-R27-L14274K   281K.01812
    NX8663JB-BC  C10-314-14-01-XXX-R27-L1401S   93S.01863
    PS2502-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
    PS2502-4-DIP  C10-316-16-01-XXX-R27-L1401S   93S .01832
    PS2503-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
    PS2505-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
    PS2505-4-DIP  C10-316-16-01-XXX-R27-L1401S   93S .01832
    PS2506-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
    PS2513-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
    PS2514-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
    PS2535-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
    PS2561-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
    PS2561BL1-1-DIP  C10-404-04-01-XXX-R27-L1401S   93S .01873
    PS2561D-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
    PS2561DL1-1-DIP  C10-404-04-01-XXX-R27-L1401S   93S .01873
    PS2561DL1-1-DIP  C10-404-04-01-XXX-R27-L1401S   93S .01873
    PS2562-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
    PS2562L1-1-DIP  C10-404-04-01-XXX-R27-L1401S   93S .01873
    PS2565-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
    PS2565L1-1-DIP  C10-404-04-01-XXX-R27-L1401S   93S .01873
    PS8501-DIP  C10-408-08-01-XXX-R27-L1401S   93S .01853
    PS8501L1-DIP  C10-408-08-01-XXX-R27-L1401S   93S .01853
    PS8501L2-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
    PS8501L3-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
    PS8502-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
    PS8502L1-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
    PS8502L2-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
    PS8502L3-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
    PS9505-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
    PS9505L1-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
    PS9505L2-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
    PS9505L3-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
    PS9506-DIPC10-308-08-01-XXX-R27-L1401S93S.01842
    PS9506L1-DIPC10-308-08-01-XXX-R27-L1401S93S.01842
    PS9506L2-DIPC10-308-08-01-XXX-R27-L1401S93S.01842
    PS9506L3-DIPC10-308-08-01-XXX-R27-L1401S93S.01842
    PS9531-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
    PS9531L1-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
    PS9531L2-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
    PS9531L3-DIPC10-408-08-01-XXX-R27-L1401S93S.01853

    材料:

    绝缘:高温uL 94v - 0

    端子:黄铜，符合ASTM-B16标准

    电镀:符合RoHS标准

    R17端子:亚光锡/触头;黄金

    R27端子:金色/触头:金色

    R32端子:镀锡/触头:镀锡

    其他镀层可用

    更多Andon品牌产品信息可咨询新葡萄AMG创展。
