Minco TC2741系列嵌入热电偶温度探头

发布时间：2025-10-15 08:54:03     浏览：671

　　Minco TC2741系列嵌入热电偶温度探头是一种适用于多种工业应用的温度测量设备，在物理上可与Minco嵌入RTD互换，拥有四种件级铷合金外壳样式，温度范围为-184至260°C(-300至500°F)，引线长度有144英寸和48英寸两种规格。

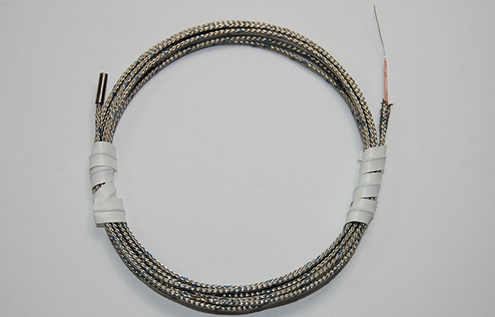

Minco TC2741系列嵌入热电偶温度探头

　　型号参数信息：

Product元素类型外壳样式引线长度（英寸）直径（mm）长度（mm）Lead Jacket
TC2741KU144SSingle JunctionD1442.037.62Stainless steel overbraid with PTFE insulated leads
TC2741EG144SSingle JunctionD1442.037.62Stainless steel overbraid with PTFE insulated leads
TC2741EG48SSingle JunctionD482.037.62Stainless steel overbraid with PTFE insulated leads
TC2741EU144SSingle JunctionD1442.037.62Stainless steel overbraid with PTFE insulated leads
TC2741EU48SSingle JunctionD482.037.62Stainless steel overbraid with PTFE insulated leads
TC2741JG144SSingle JunctionD1442.037.62Stainless steel overbraid with PTFE insulated leads
TC2741JG48SSingle JunctionD482.037.62Stainless steel overbraid with PTFE insulated leads
TC2741JU144SSingle JunctionD1442.037.62Stainless steel overbraid with PTFE insulated leads
TC2741JU48SSingle JunctionD482.037.62Stainless steel overbraid with PTFE insulated leads
TC2741KG144SSingle JunctionD1442.037.62Stainless steel overbraid with PTFE insulated leads
TC2741KG48SSingle JunctionD482.037.62Stainless steel overbraid with PTFE insulated leads
TC2741KU48SSingle JunctionD482.037.62Stainless steel overbraid with PTFE insulated leads
TC2741TG144SSingle JunctionD1442.037.62Stainless steel overbraid with PTFE insulated leads
TC2741TG48SSingle JunctionD482.037.62Stainless steel overbraid with PTFE insulated leads
TC2741TU144SSingle JunctionD1442.037.62Stainless steel overbraid with PTFE insulated leads
TC2741TU48SSingle JunctionD482.037.62Stainless steel overbraid with PTFE insulated leads

Minco是专注于为严苛应用提供温度传感与控制、热加热、柔性电路及集成解决方案。其产品广泛应用于医疗、航空航天、半导体、能源等多个行业。深圳市新葡萄AMG创展科技有限公司优势分销Minco产品，欢迎咨询了解。

推荐资讯

  • DYTRAN公司加速度传感器的应用
    DYTRAN公司加速度传感器的应用 2023-10-31 15:12:31

    加速度传感器是一种用于测量物体加速度变化的设备。在许多应用中，了解物体的加速度是非常重要的，因为它与物体的运动状态密切相关。加速度传感器通过将物体的加速度转换成电信号，从而实时监测和记录物体的速度变化、位置变化和动作识别等运动状态的信息。

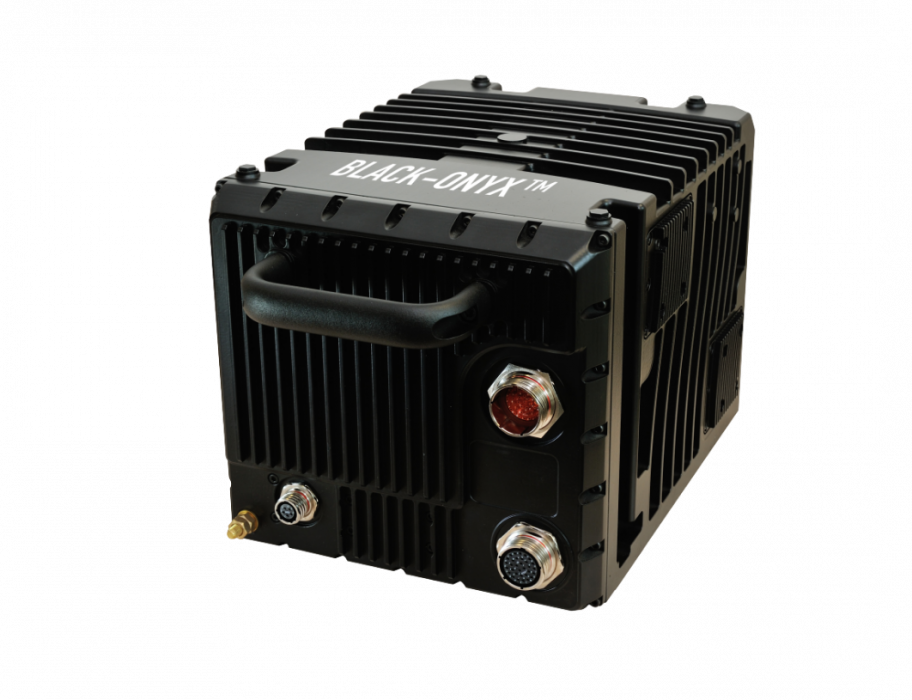

  • Black-Onyx? - 用于潜艇的高性能惯性导航系统Safran
