Vishay 293D336X96R3A2TE3固体SMD钽电容
发布时间：2026-01-16 08:43:19 浏览：257

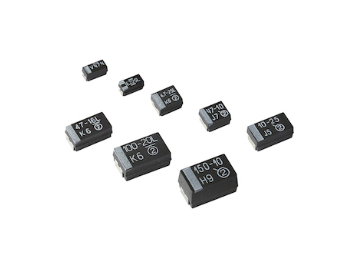

Vishay 293D系列是一款高可靠性的固态钽贴片电容，专为工业、通信和通用电子设备设计。与其他电容器相比，Vishay威世公司的这款
293D336X96R3A2TE3 钽质固态电容器具有更高的单位体积电容值，并且尺寸更小。它能够承受 6.3V直流电压。这款固态电容器的最大工作温度为
125°C。其漏电流为 2?A。其电容值为 33?F。容差为 10%。该产品长 3.2mm、高 1.6mm、深 1.6mm。
Vishay 293D系列键参数
容值范围：0.10 ?F ～ 1000 ?F
额定电压：4 V ～ 75 V(对应 85 °C)
工作温度：-55 °C ～ +125 °C(>85 °C 需自动降额)
容差：±5 % / ±10 % / ±20 % 可选
ESR：最低 0.2 Ω(100 kHz，视容值/电压/壳号而定)
纹波电流：最高 0.64 A (100 kHz)
典型应用场景
工业控制：PLC I/O �？�、伺服驱动器电源去耦
通信基础设施：5G 小基站、RRU 功放板、交换芯片旁路
汽车电子：ECU 电源、BMS 采样板、车载信息娱乐系统
通用电子：高端仪器仪表、FPGA/CPU 负载点转换器

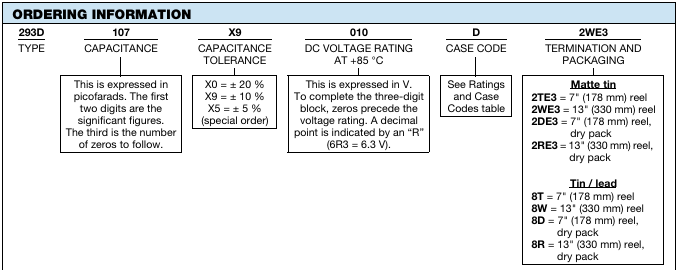

型号
| 293D336X0004A2TE3 | 293D336X9010D2TE3 | 293D336X0035E2DE3 |
| 293D336X0004A2WE3 | 293D336X9010D2WE3 | 293D336X0035E2TE3 |
| 293D336X0004B2TE3 | 293D336X9010D8T | 293D336X0035E8T |
| 293D336X0004B2WE3 | 293D336X9016B2DE3 | 293D336X06R3A2TE3 |
| 293D336X0004C2TE3 | 293D336X9016B2TE3 | 293D336X06R3A2WE3 |
| 293D336X0004C2WE3 | 293D336X9016B2WE3 | 293D336X06R3A8T |
| 293D336X0004D2TE3 | 293D336X9016B8T | 293D336X06R3B2TE3 |
| 293D336X0004D2WE3 | 293D336X9016C2TE3 | 293D336X06R3B2WE3 |
| 293D336X0010B2TE3 | 293D336X9016C2WE3 | 293D336X06R3B8T |
| 293D336X0010B2WE3 | 293D336X9016C8T | 293D336X06R3C2TE3 |
| 293D336X0010B8T | 293D336X9016D2TE3 | 293D336X06R3C2WE3 |
| 293D336X0010C2TE3 | 293D336X9016D2WE3 | 293D336X06R3C8T |
| 293D336X0010C2WE3 | 293D336X9016D8T | 293D336X5004B2TE3 |
| 293D336X0010C8T | 293D336X9020C2TE3 | 293D336X5010B2TE3 |
| 293D336X0010D2TE3 | 293D336X9020C2WE3 | 293D336X5010C2TE3 |
| 293D336X0010D2WE3 | 293D336X9020C8T | 293D336X5010C2WE3 |
| 293D336X0010D8T | 293D336X9020C8W | 293D336X5010D2TE3 |
| 293D336X0016B2TE3 | 293D336X9020D2TE3 | 293D336X5016D2TE3 |
| 293D336X0016B8T | 293D336X9020D2WE3 | 293D336X5016D2WE3 |
| 293D336X0016C2TE3 | 293D336X9020D8T | 293D336X5020D2TE3 |
| 293D336X0016C2WE3 | 293D336X9025D2TE3 | 293D336X9004A2TE3 |
| 293D336X0016C8T | 293D336X9025D2WE3 | 293D336X9004A2WE3 |
| 293D336X0016D2TE3 | 293D336X9025D8T | 293D336X9004B2TE3 |
| 293D336X0016D2WE3 | 293D336X9025E2DE3 | 293D336X9004B2WE3 |
| 293D336X0016D8T | 293D336X9025E2RE3 | 293D336X9004C2TE3 |
| 293D336X0016D8W | 293D336X9025E2TE3 | 293D336X9004C2WE3 |
| 293D336X0020C2TE3 | 293D336X9025E2WE3 | 293D336X9004D2TE3 |
| 293D336X0020C2WE3 | 293D336X9025E8T | 293D336X9004D2WE3 |
| 293D336X0020D2TE3 | 293D336X9035E2TE3 | 293D336X9010B2TE3 |
| 293D336X0020D2WE3 | 293D336X96R3A2DE3 | 293D336X9010B2WE3 |
| 293D336X0020D8T | 293D336X96R3A2TE3 | 293D336X9010B8T |
| 293D336X0025D2TE3 | 293D336X96R3A2WE3 | 293D336X9010B8W |
| 293D336X0025D2WE3 | 293D336X96R3A8T | 293D336X9010C2TE3 |
| 293D336X0025D8T | 293D336X96R3B2TE3 | 293D336X9010C2WE3 |
| 293D336X0025E2TE3 | 293D336X96R3B2WE3 | 293D336X9010C8T |
| 293D336X0025E2WE3 | 293D336X96R3B8T |
|
| 293D336X0025E8T | 293D336X96R3C2TE3 |
|
| 293D336X0035D2TE3 | 293D336X96R3C2WE3 |
|
| 293D336X0035D8T | 293D336X96R3C8T |
|
更多vishay相关产品信息可咨询新葡萄AMG创展。
