Minco S101908,S101909,S101910嵌入式RTD温度传感器|Pt1000轴承测温解决方案

发布时间：2026-04-15 08:56:32 浏览：141

　　Minco S101908/S101909/S101910属于微型嵌入式RTD传感器系列，专为轴承温度监测、狭小空间安装及恶劣工业环境设计。

Minco S101908、S101909、S101910嵌入式RTD温度传感器

　　其核心特点是：

　　· 小尺寸嵌入安装(钻孔或巴氏合金层内)

　　· 快速响应温度变化

　　· 高精度铂电阻(Pt1000)

　　· 抗震、抗油渗设计

　　典型应用：

　　· 涡轮机 / 发电机轴承

　　· 电机轴承监测

　　· 压缩机设备

　　· 重工业旋转机械

　　系列核心参数(通用特性)

参数	规格
传感器类型	铂电阻 RTD（单元）
标称阻值	1000Ω @ 0°C
精度	±0.12%（Class B）
TCR	0.00385 Ω/Ω/°C
温度范围	-50°C ～ +200°C / +260°C（部分型号）
响应时间	1.5 ~ 2.5 秒
安装方式	埋入式 / 弹簧加载 / 灌封
引线类型	PTFE / 不锈钢编织 / FEP
抗环境能力	高振动、油污环境

　　三者核心对比

型号	外径	响应速度	机械强度	适用场景
S101908	最大（4.8mm）	中	????	重载轴承
S101909	中（3.2mm）	较快	???	通用工业
S101910	最�。�2.0mm）	最快	??	精密/微型

型号及参数信息

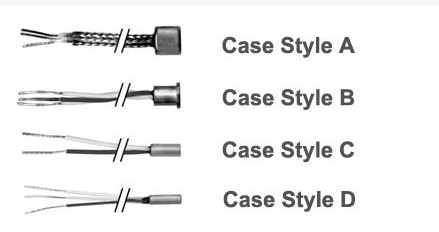

Product	Element Type	Resistance	TCR	Case Style	Lead Length (mm)	# Leads	Lead Jacket
S101909PF2S36	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	914	2	Stainless steel overbraid with PTFE insulated leads
S101909PF2T6	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	152	2	Teflon insulated lead wires
S101909PF3S40	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	1,016	3	Stainless steel overbraid with PTFE insulated leads
S101910PF2F60	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	1,524	2	FEP over PTFE insulated leads
S101910PF2T1	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	25	2	Teflon insulated lead wires
S101910PF2T100	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	2,540	2	Teflon insulated lead wires
S101910PF2T12	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	305	2	Teflon insulated lead wires
S101910PF2T24	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	610	2	Teflon insulated lead wires
S101910PF2T36	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	914	2	Teflon insulated lead wires
S101910PF2T8	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	203	2	Teflon insulated lead wires
S101910PF4T36	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	914	4	Teflon insulated lead wires
S101908PF3R36AC1	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	B	914	3	FEP over stainless steel braid and PTFE insulated leads
S101908PF3R36AC3	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	B	914	3	FEP over stainless steel braid and PTFE insulated leads
S101908PF3T36AC1	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	B	914	3	Teflon insulated lead wires
S101909PF2R12	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	305	2	FEP over stainless steel braid and PTFE insulated leads
S101909PF2S48	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	1,219	2	Stainless steel overbraid with PTFE insulated leads
S101909PF2T10	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	254	2	Teflon insulated lead wires
S101909PF2T100	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	2,540	2	Teflon insulated lead wires
S101909PF2T12	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	305	2	Teflon insulated lead wires
S101909PF2T14	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	356	2	Teflon insulated lead wires
S101909PF2T24	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	610	2	Teflon insulated lead wires
S101909PF2T36	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	914	2	Teflon insulated lead wires
S101909PF2T48	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	1,219	2	Teflon insulated lead wires
S101909PF3T36	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	914	3	Teflon insulated lead wires
S101909PF4T10	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	254	4	Teflon insulated lead wires
S101910PF2R12	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	305	2	FEP over stainless steel braid and PTFE insulated leads
S101910PF2S120	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	3,048	2	Stainless steel overbraid with PTFE insulated leads
S101910PF2S36	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	914	2	Stainless steel overbraid with PTFE insulated leads
S101910PF2S54	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	1,372	2	Stainless steel overbraid with PTFE insulated leads
S101910PF2S60	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	1,524	2	Stainless steel overbraid with PTFE insulated leads
S101910PF2T14	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	356	2	Teflon insulated lead wires
S101910PF2T20	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	508	2	Teflon insulated lead wires
S101910PF2T60	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	1,524	2	Teflon insulated lead wires
S101910PF3S36	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	914	3	Stainless steel overbraid with PTFE insulated leads
S101910PF3T14	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	356	3	Teflon insulated lead wires
S101910PF3T24	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	610	3	Teflon insulated lead wires
S101910PF3T36	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	914	3	Teflon insulated lead wires
S101910PF4S36	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	914	4	Stainless steel overbraid with PTFE insulated leads
S101910PF4T6	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	152	4	Teflon insulated lead wires

Minco是专注于为严苛应用提供温度传感与控制、热加热、柔性电路及集成解决方案。其产品广泛应用于医疗、航空航天、半导体、能源等多个行业。深圳市新葡萄AMG创展科技有限公司优势分销Minco产品，欢迎咨询了解。
