Rogers罗杰斯RO3203、RO3206、RO3210材料规格
发布时间：2025-12-29 09:22:01 浏览：295

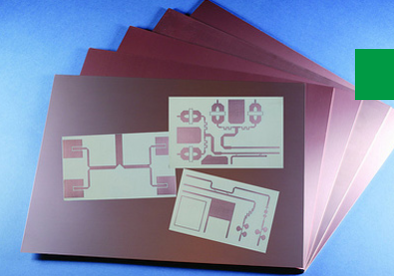

Rogers罗杰斯RO3203、RO3206和RO3210高频PCB电路材料采用陶瓷填料层压，并由玻璃编织布加固。这些材料的开发是为了以具有竞争力的价格提供卓越的电气和机械稳定性。
Rogers RO3200系列材料作为RO3000系列高频材料的延伸，有一个非常显著的特点，那就是更好的机械稳定性。
| Property | Typical Value(1) | Direction | Unit | Condition | Test Method |
| RO3203 | RO3206 | RO3210 |
| Dielectric Constant,εrProcess | 3.02± 0.04 | 6.15± 0.15 | 10.2± 0.50 | Z | – | 10 GHz 23°C | IPC-TM-650 2.5.5.5 Clamped stripline |
| (2)Dielectric Constant,εrDesign | 3.02 | 6.6 | 10.8 | Z | – | 8 GHz – 40 GHz | Differential Phase Length Method |
| Dissipation Factor,tan δ | 0.0016 | 0.0027 | 0.0027 | Z | – | 1.0 GHz 23°C | IPC-TM-650 2.5.5.5 |
| Thermal Coefficient of εr | –13 | –212 | –459 | Z | ppm/°C | 10 GHz 0–100°C | IPC-TM-650 2.5.5.5 |
| Dimensional Stability | 0.8 | 0.8 | 0.8 | X,Y | mm/m | COND A | ASTM D257 |
| Volume Resistivity | 107 | 103 | 103 |
| MΩ?cm | COND A | IPC 2.5.17.1 |
| Surface Resistivity | 107 | 103 | 103 |
| MΩ | COND A | IPC 2.5.17.1 |
| Tensile Modulus | 409 351 | 462 462 | 579 517 | MD CMD | kpsi | 23°C | ASTM D638 |
| Water Absorption | <0.1 | <0.1 | <0.1 | – | % | D24/23 | IPC-TM-650 2.6.2.1 |
| Specific Heat | 0.95 | 0.85 | 0.79 |
| J/g/K |
| Calculated |
| Thermal Conductivity | 0.48 | 0.67 | 0.81 | – | W/m/K | 80°C | ASTM C518 |
| Coefficient of Thermal Expansion | 13 58 | 13 34 | 13 34 | X,Y,Z | ppm/°C | –55 to 288°C | ASTM D3386–94 |
| Td | 500 | 500 | 500 |
| °C | TGA | ASTM D3850 |
| Color | Tan | Tan | Off White |
|
|
|
|
| Density | 2.1 | 2.7 | 3 |
| gm/cm3 |
|
|
| Copper Peel Strength | 10.2 | 10.7 | 11 |
| pli | 1 oz. EDC After Solder Float | IPC-TM-2.4.8 |
| Flammability | V–0 | V–0 | V–0 |
|
|
| UL 94 |
| Lead Free Process Compatible | YES | YES | YES |
|
|
|
|
Rogers罗杰斯RO3203PTFE玻璃布的介电常数为3.02。Rogers
RO3203的介电损耗为0.0016，将可用频率范围扩展到40GHz。Rogers
RO3206PTFE陶瓷玻璃布的介电常数为6.15，而RO3210PTFE陶瓷玻璃布的介电常数为10.2。罗杰斯RO3206和Rogers
RO3210聚四氟乙烯玻璃布的介电损耗为0.0027。
| Standard Thickness | Standard Panel Size | Standard Copper Cladding |
RO3203:
0.010” (0.25mm)
0.020” (0.50mm)
0.030” (0.75mm)
0.060” (1.52mm) | 12" X 18" (305 X 457mm)
24" X 18" (610 X 457mm) | ? oz. (17μm) electrodeposited copper foil (HH/HH) & rolled copper foil (5R/5R)
1 oz. (35μm) electrodeposited copper foil. (H1/H1) & rolled copper foil (1R/1R)
2 oz. (70μm) electrodeposited copper foil. (H2/H2) & rolled copper foil (2R/2R) |
|
|
|
|
RO3206/RO3210:
0.025” (0.64mm)
0.050” (1.28mm) | 12" X 18" (305 X 457mm)
24" X 18" (610 X 457mm) | ? oz. (17μm) electrodeposited copper foil (HH/HH)
1 oz. (35μm) electrodeposited copper foil. (H1/H1)
2 oz. (70μm) electrodeposited copper foil. (H2/H2) & rolled copper foil (2R/2R) Other claddings may be available. Contact customer service. |
|
|
Rogers罗杰斯RO3203、RO3206和RO3210高频PCB电路材料的优点如下：
高频性能将频率范围扩展到20GHz以上(RO3203层压板)，适用于环氧树脂多层板的混合压机设计，光滑的材料表面使蚀刻线更加准确。
Rogers罗杰斯RO3203、RO3206和RO3210高频PCB电路材料的应用：
汽车防撞系统PCB，汽车全球定位卫星天线PCB，无线通信系统PCB，无线通信PCB中的微带贴片天线
ive卫星天线PCB，有线系统中的数据连接PCB，远程抄表设备PCB，电源背板PCB，LMDS和无线广播PCB，基站基础设施PCB。
